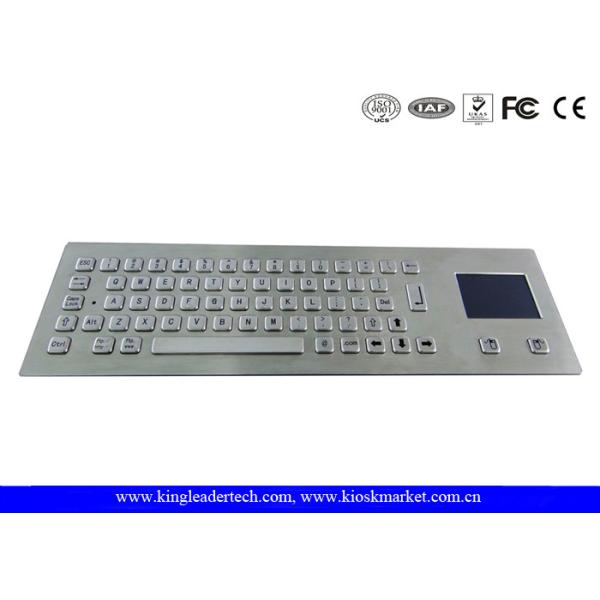

Industrial Keyboard With Touchpad And 64 Keys IP65 Rated For Kiosk

Specifications

Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Trackball: Stainless steel(Dia: 38mm)

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:120±15g

Key travel: 2.0mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Touchpad

Power supply voltage: 5 VDC ± 10%

Current rating (active mode): 17 mA

Interface: PS2 or USB

X/Y position sensing resolution: 40 counts/mm

X/Y position reporting: Relative

Tracking speed: Maximum 1, 016 m/sec

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and Dimension

Weight: 1.80kg

Dimension: Front panel: 400.0x124.0x22.2mm
